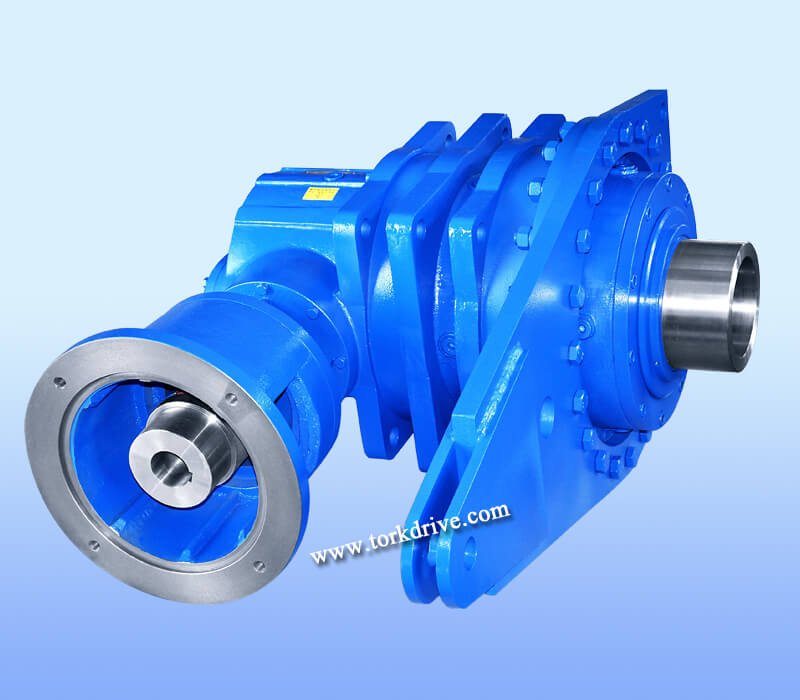

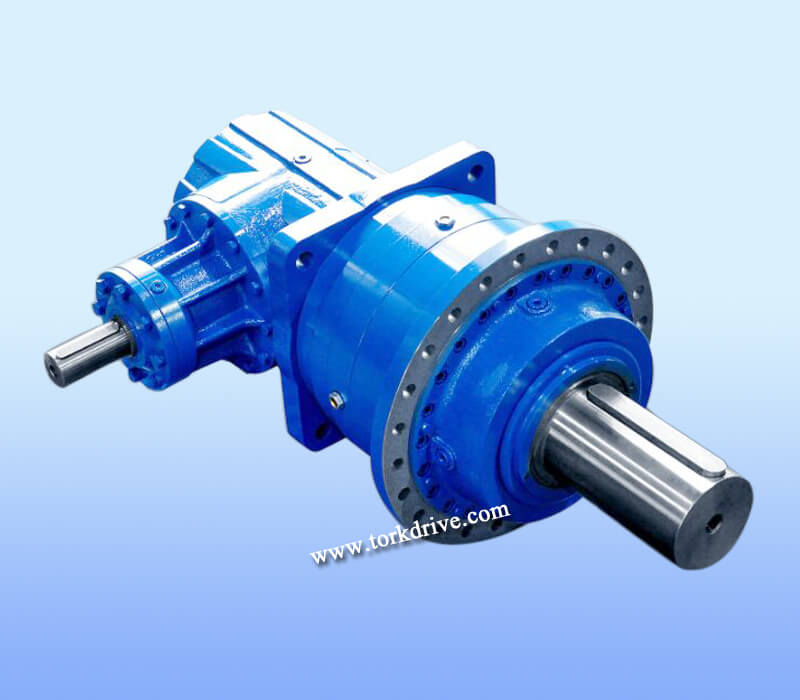

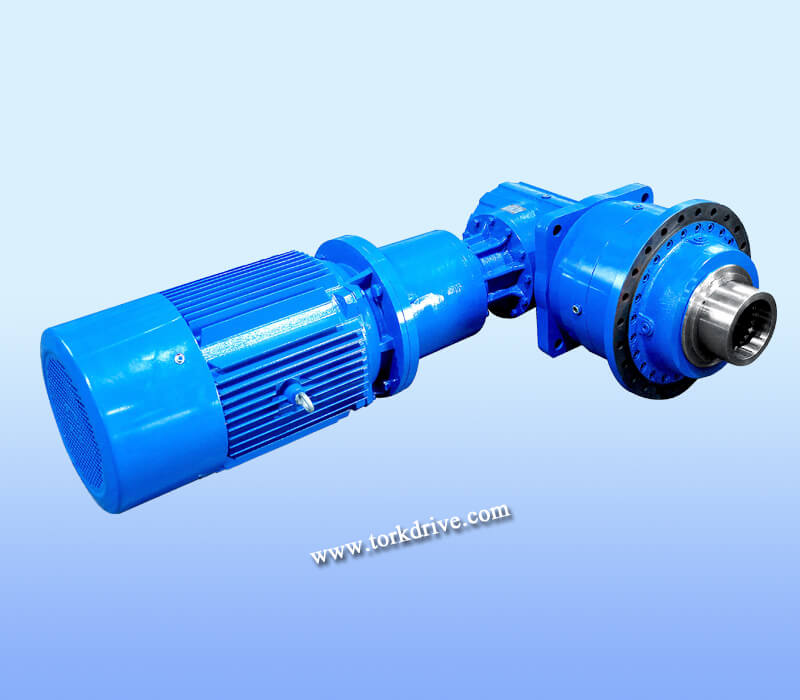

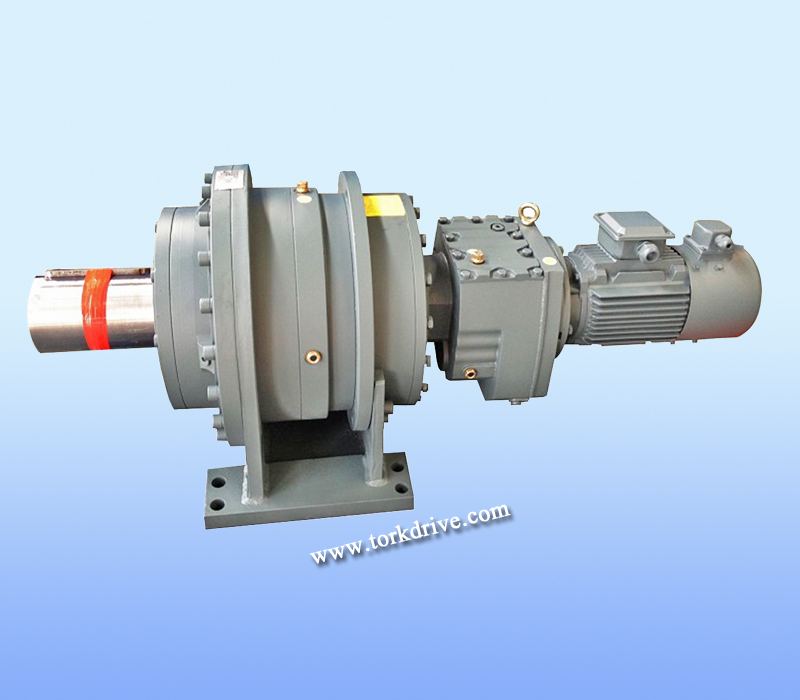

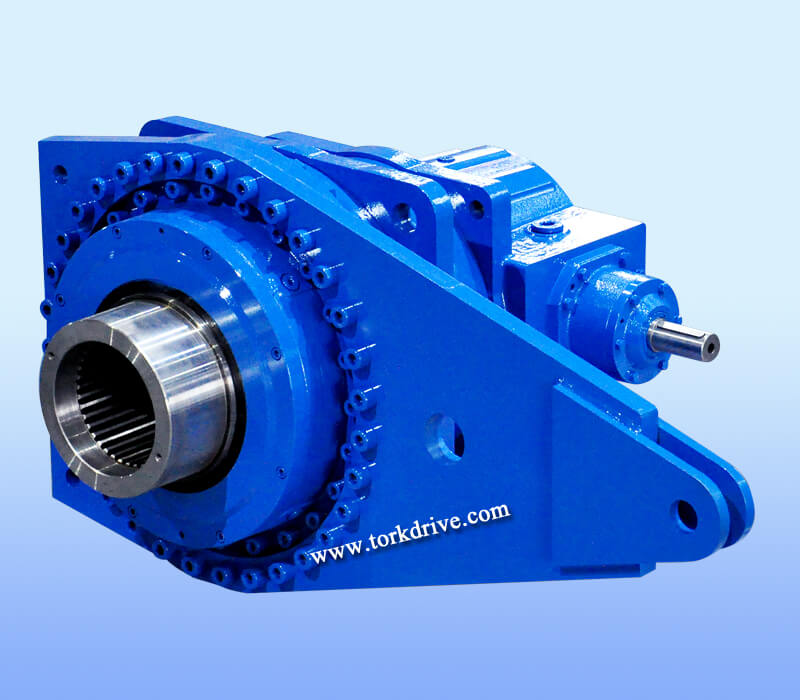

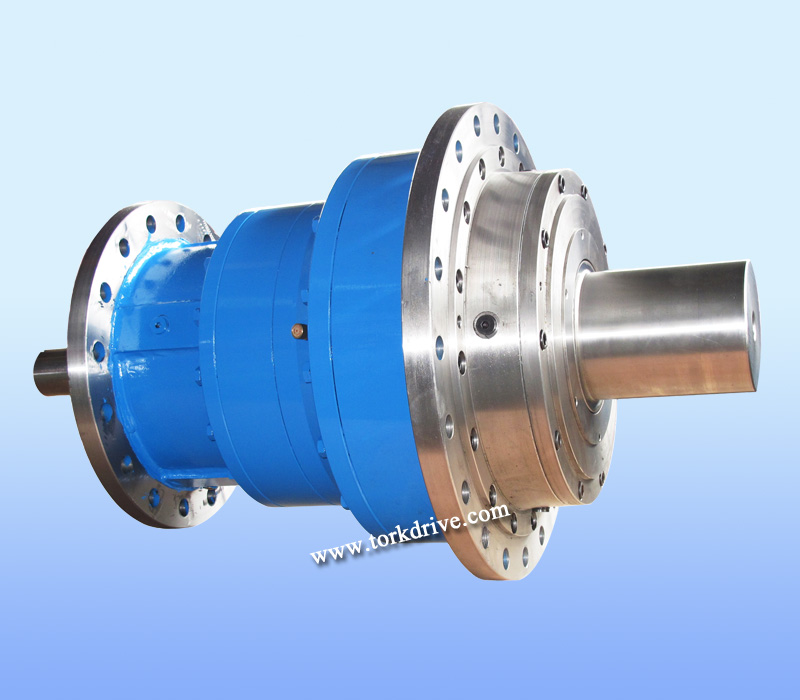

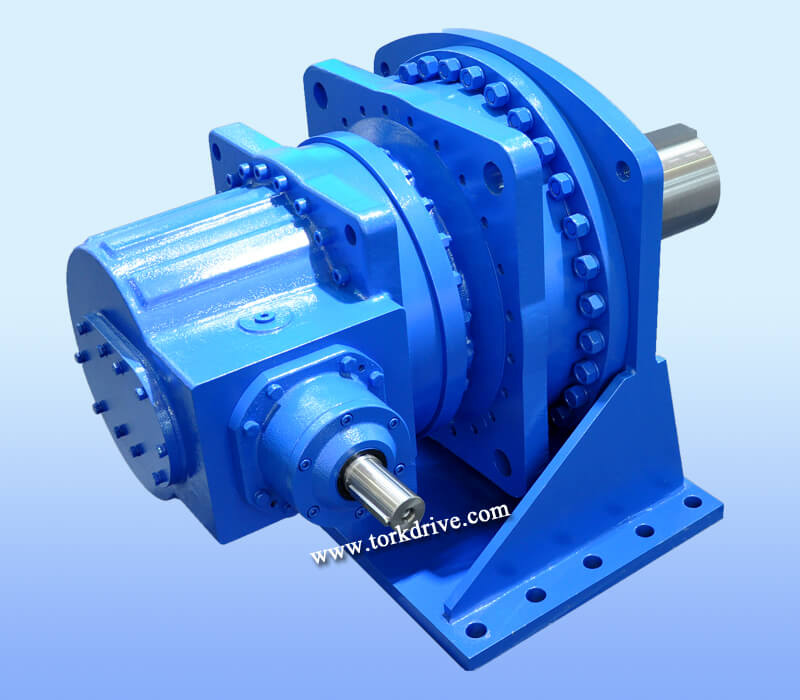

Planetary gearbox

Model: Planetary gear reducer

• •      Planetary gear motors introduces:
  • 1. Modular design realizes variable conbination.
  • Housing is made of cast iron,which improve its rigidity and anti-vibration.
  • 2.Sun and planet gears are processed by cementite and hardening.Gears are processed by grinding,which improve the efficiency and life time of the planetary gear unit.
  • 3.Input model:coaxial input,helical gear input,bevel helical gear input,IEC flange input.
  • 3.Output model:internal involute spline,hollow shaft with shrink disk,external involute spline,solid shaft with key-way.
  • 4.Mounting mode:horizontal,vertical,torque arm.
  • 5.P series sizes 9-34,transmission stage:2,3,ratio:25-4000.Ratio can be larger in combination with R,K gearbox.
  • 6.The gearbox can make replacement of Flender gearbox,Brevini gearbox,Bonfiglioli gearbox.
