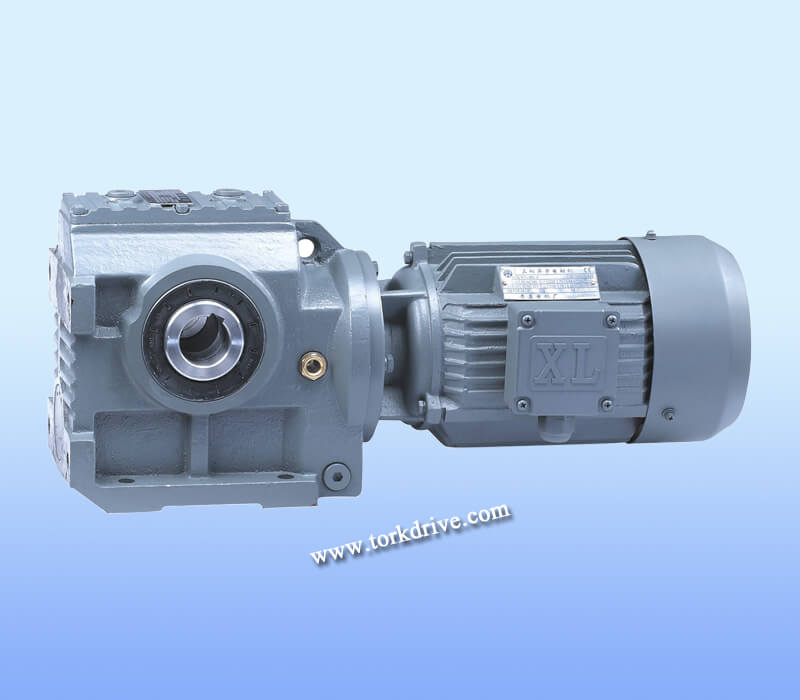

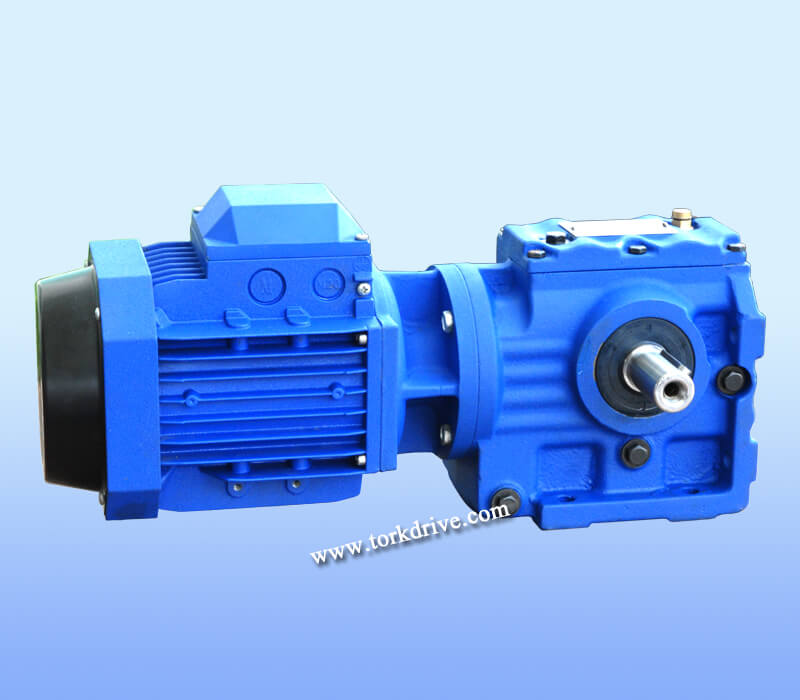

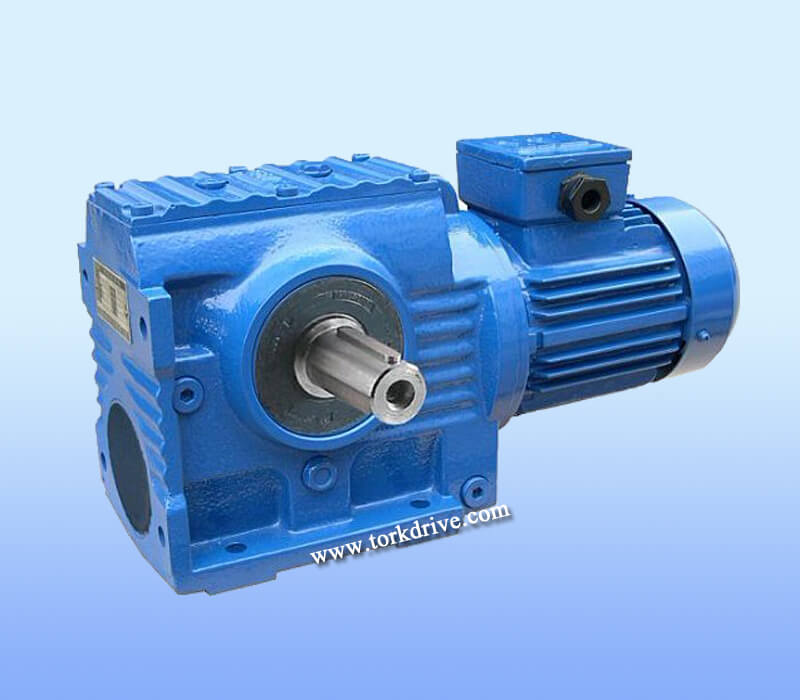

S worm geared motor

Model: worm gearbox

  •      Helical worm geared motor are different from the ordinary worm reducer,the input adopts a pair of helical gears to make the worm reducing rotate speed. the quantity of heat is reduced,meanwhile,it can gain larger transmission ratio.
    Its structure are reasonable,can combine with R,MB series,satisfy different clients' using demand.

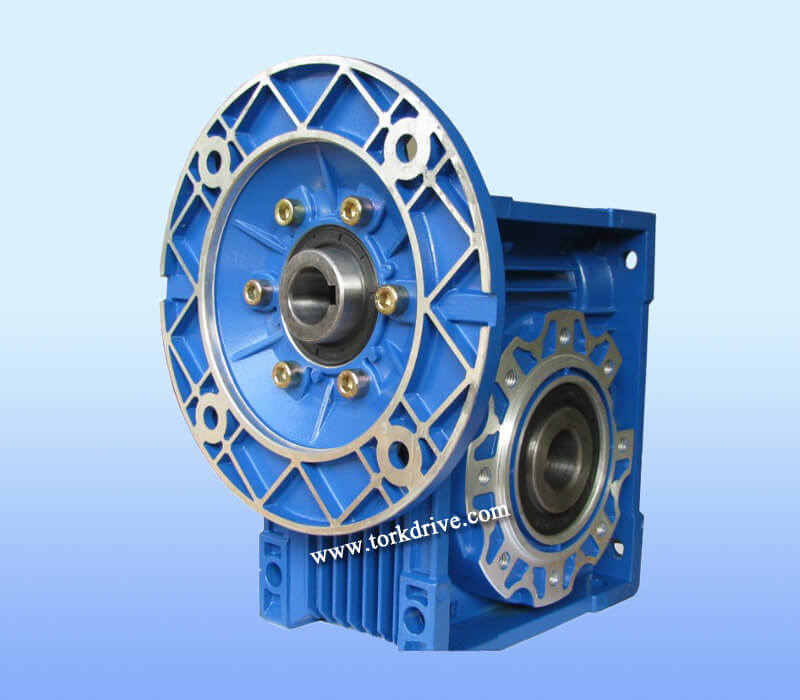

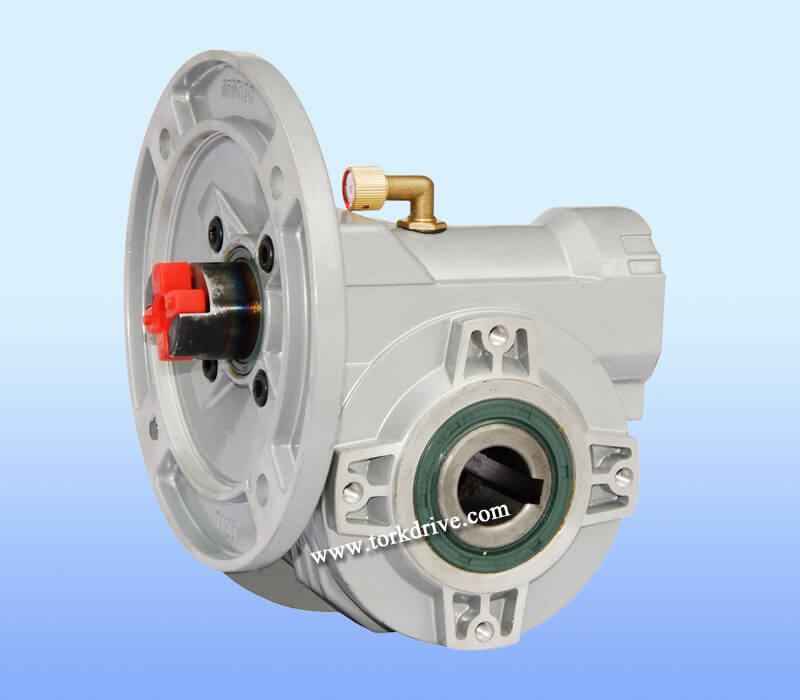

    Worm gearbox also including RV worm gearbox,VF worm gearbox.
    Torque Range:Up to 5000N.m
    Input Power Rating:0.18kW to 22kW
    Ratio:9.0 to 14062
    Input Configuration:IEC-normalized motor adapter, IEC-normalized motor,solid shaft.
    Output Configuration:solid with key, hollow shaft,flange.etc.

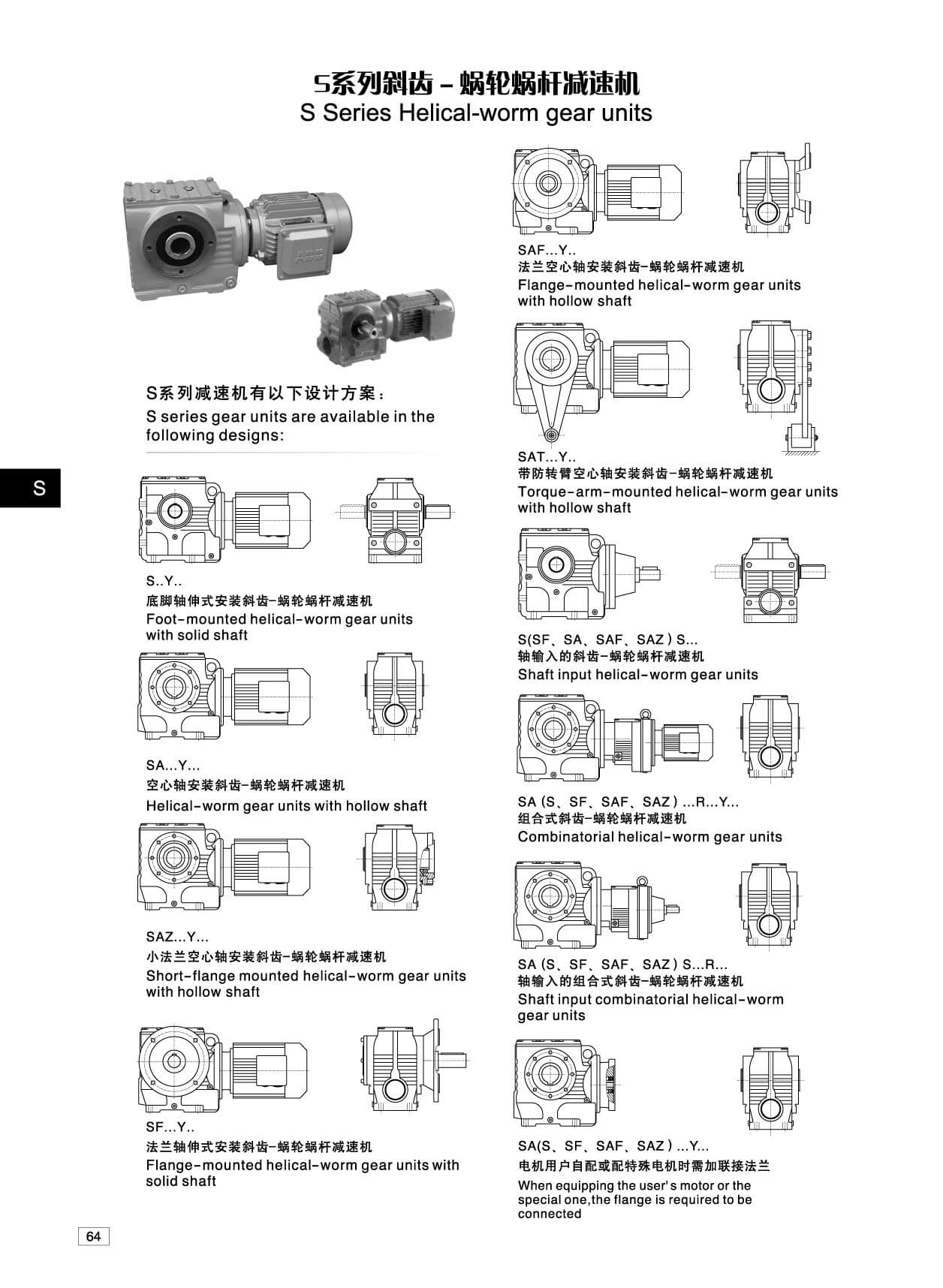

    Mounting solution:flange mounted,foot mounted and torque arm.
    The characteristic of the helical worm gear:
    1.Optimized design, modular combination,right angle output,space reduction
    2.High strength and longevity gears
    3.Reverse operation function,the reducer can be added up with various motors
    4.High output torque, smooth startup,low noise,high efficiency.
