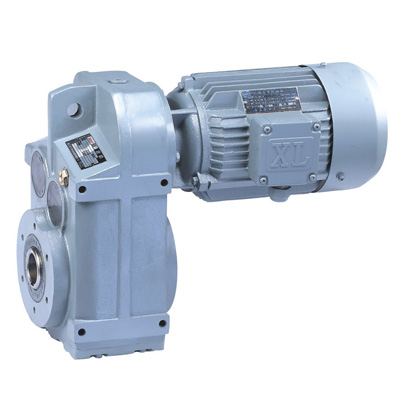

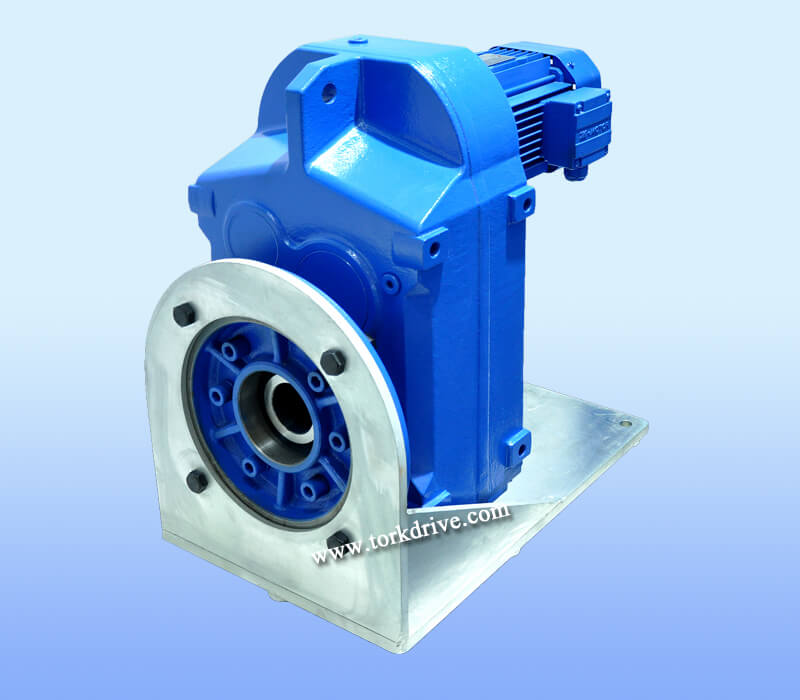

F parallel shaft geared motor

F parallel shaft geared motor

Model: parallel shaft gearbox

  •     F series parallel shaft geared motors,gearbox have the feature of small volume,light weight,heavy transmission torque,steady startup,low consumption,various mounting types and flexible input and output etc.
    Torque Range：Up to 18,000Nm
    Input Power Rating: from 0.12kW to 200kW
    Ratio:from 3.8:1 to 13000:1
    Input Configuration：IEC motor adapter, IEC motor,solid shaft with key-way.
    Output Configuration: solid with key-way, hollow shaft with key-way,hollow shaft with shrink disk;

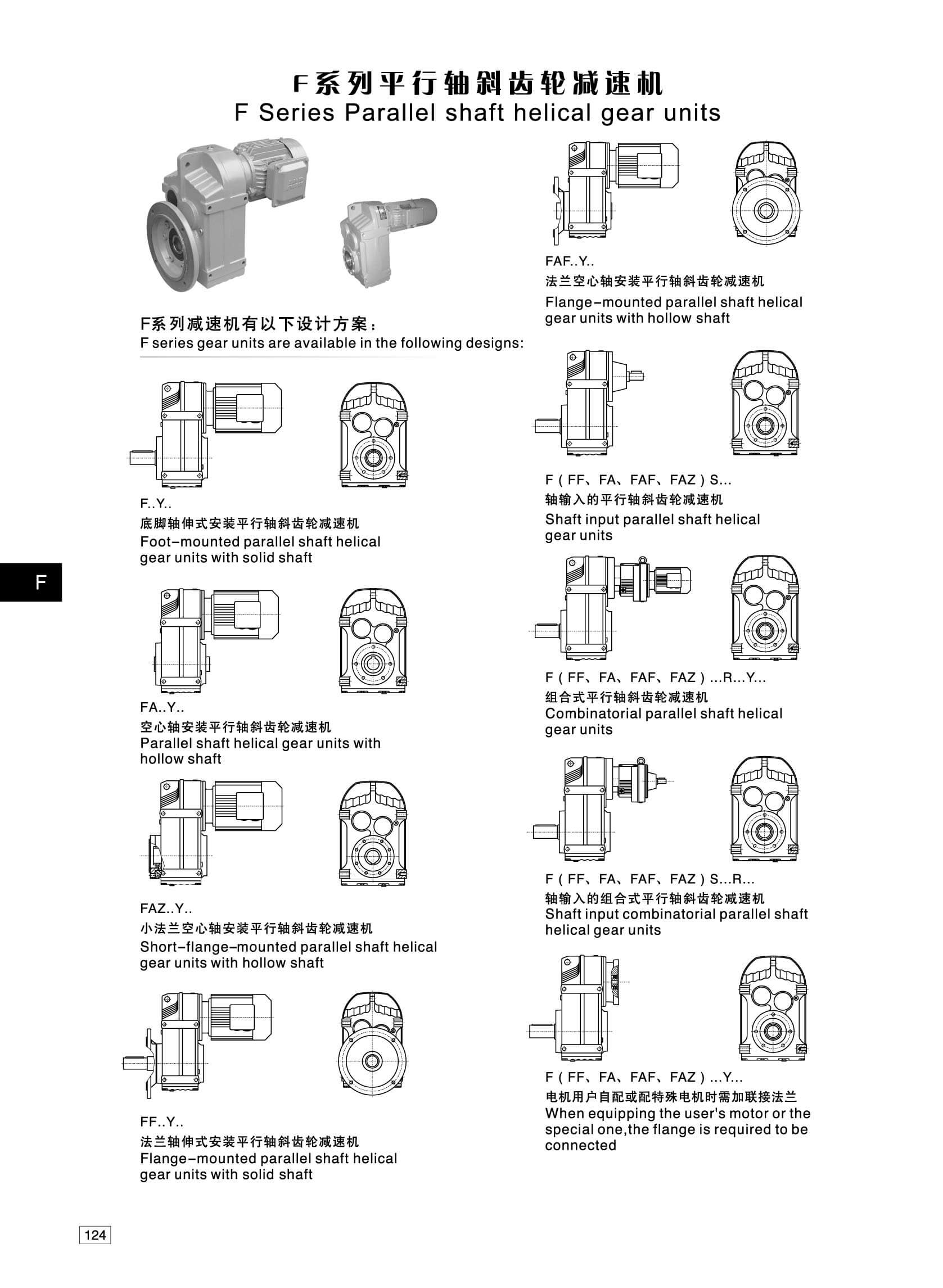

    Mounting: flange mounted,foot mounted,torque arm mounted.

    This type can working as agitator gearbox,mixer gearbox,

  • Specification
